type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by fluxcap on Wed Jan 22, 2014 6:08 pm

Been thinking about converting to type 3 brakes on the back of the bus (straight axle conversion) for a little extra braking power, but want to make sure I'll still be able to get the wheel on/off fairly easily.

Right now I have 68+ beetle four lug drums with adapters to run my wide 5 rims.  I'm running stock 14" bus rims (lame I know  Laughing ) with 195/75/14 tires.  It's currently a very tough squeeze getting my wheels on and off, takes a lot of wiggling, but they do go on and off.  My adapters are just a tad over 1/4" wide which seems to be the magic number.  If the drum/adapter combination were any wider, I'd have a harder time getting the wheel on/off, if it was any narrower, my tires would be rubbing the springplate.

So my question is, how wide is a type 3 drum compared to a type 1 drum?  I know they are about an inch larger in circumference, but don't know how much wider they are (ie...will my tire sit closer or further away from the springplate or inner wheel well).

I can always change to a 185/75/14 tire if needed to give just a tad more room, without really affecting the rpms significantly.  Not really looking to change to 15" rims though as that would be a little pricey right now.

Anybody possibly got a 4 lug type 1 drum and a wide 5 type 3 drum they could measure for me?  Found this picture of the two online, and it looks like the size difference is about what I need, but I don't have much wiggle room, so I'd like to be sure.


Last edited by fluxcap on Tue Mar 11, 2014 7:29 pm; edited 2 times in total

_________________
eric

It's like, how much more black could this be, and the answer is none.......none more black.

1962 ragtop beetle
1966 camper bus - Bocephus
avatar
fluxcap
Dub Lieutenant General

Number of posts : 3854
Location : Newnan, GA
Registration date : 2008-07-20

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by Grifspop on Wed Jan 22, 2014 10:05 pm

Darryl has Type 3 drums on the back of his green and white bus, with a straight axle swap, but he's running 15" wheels- I can't remember if he's got 67 or 68 axles- I've got some Type 3 drums I can measure- but the cool thing is that you can get them in 4 lug (newer style) or wide 5 (older style) if clearance is an issue
avatar
Grifspop
Dub God

Number of posts : 2323
Location : Someplace you wouldn't think to look
Registration date : 2009-04-14

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by Grifspop on Wed Jan 22, 2014 10:07 pm

The Type 3 shoes and wheel cylinders are huge when compared to a type 1- the Type 3 was a much bigger and heavier car- I'd really consider the swap on the braking merits alone  Very Happy
avatar
Grifspop
Dub God

Number of posts : 2323
Location : Someplace you wouldn't think to look
Registration date : 2009-04-14

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by Grifspop on Wed Jan 22, 2014 11:25 pm

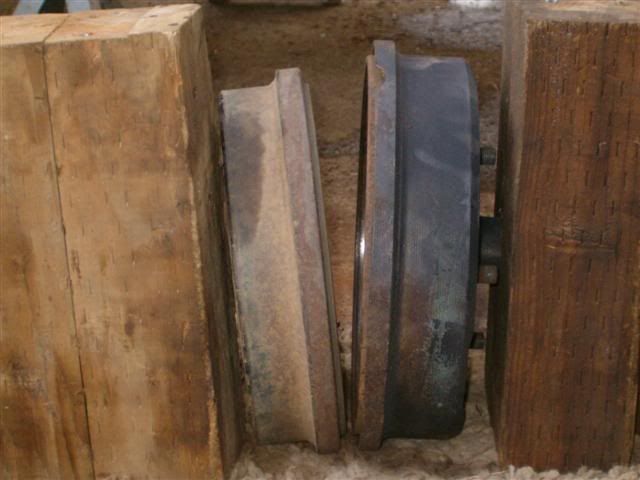

Looks like from the floor to the wheel mounting surface on the Type 1 is 2 3/8"
from the floor to the Type 3 mounting surface is 2 7/8"


http://www.flickr.com/photos/grifspop/12096584365/

Both drums are 4 lug style


Last edited by Grifspop on Wed Jan 22, 2014 11:32 pm; edited 1 time in total
avatar
Grifspop
Dub God

Number of posts : 2323
Location : Someplace you wouldn't think to look
Registration date : 2009-04-14

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by Grifspop on Wed Jan 22, 2014 11:31 pm

a couple of things to keep in mind:

if you use '68 axles, the drums bolt right up without any machining

if you use shorter axles, you'll have to get the snout on the drums machined down

you'll use the Type 3 backing plates, but the Type 1 axle seals

the newer 4 lug drums are 2 piece- they use a hub and drum and can be removed without taking off the big a$$ axle nuts

the older wide 5 drums are one piece- and they're a little tougher to find- (ask Darryl)

avatar
Grifspop
Dub God

Number of posts : 2323
Location : Someplace you wouldn't think to look
Registration date : 2009-04-14

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by fluxcap on Thu Jan 23, 2014 4:29 am

Pete, you rock, thanks so much for the measurements. Looks like its about a half inch difference then, and when you account for the adapters I'm currently using, that difference is actually less than a quarter inch. I have could probably still squeeze the tire on, and if not, I could probably swap to the slightly smaller tire and get the clearance I need, or use the old bottle jack on the axle tube trick to force the spring plate down for removal/install. I've got 68 axles, so I wouldn't need to machine the snouts down, just need to get the drums and backing plates along with the new hardware (wheel cylinders, shoes, etc...)

Guess I'll start trying to slowly locate some parts. Thanks again for the help, I appreciate it!

_________________
eric

It's like, how much more black could this be, and the answer is none.......none more black.

1962 ragtop beetle
1966 camper bus - Bocephus
avatar
fluxcap
Dub Lieutenant General

Number of posts : 3854
Location : Newnan, GA
Registration date : 2008-07-20

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by type4revolution on Thu Jan 23, 2014 2:26 pm

Use wide five thing drums if you can find a set. Def more braking surface great for those who like to tow a trailer or 1,000lbs of camping gear or parts.
avatar
type4revolution
Complete Dub Addict

Number of posts : 907
Location : outside savannah ga
Registration date : 2011-12-11

View user profile

Back to top Go down

p

Post by type4revolution on Thu Jan 23, 2014 2:29 pm



Last edited by type4revolution on Thu Jan 23, 2014 3:23 pm; edited 5 times in total
avatar
type4revolution
Complete Dub Addict

Number of posts : 907
Location : outside savannah ga
Registration date : 2011-12-11

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by fluxcap on Thu Jan 23, 2014 2:31 pm

Thanks Jeff, I couldn't get the link to open, but that may just be my work computer, so I'll check at home. Everything I've read said the thing drums still only take the 40mm shoes, but the type 3 drums are supposed to accept the larger 45mm shoes.

_________________
eric

It's like, how much more black could this be, and the answer is none.......none more black.

1962 ragtop beetle
1966 camper bus - Bocephus
avatar
fluxcap
Dub Lieutenant General

Number of posts : 3854
Location : Newnan, GA
Registration date : 2008-07-20

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by type4revolution on Thu Jan 23, 2014 2:53 pm

No problem anything that gets rid of adapters the better. I have done numerous brake upgrades for bus's most effective and costly are disk brakes up front. best use of your money and no more service to adjust. equal and positive even braking. You get what ya pay for aval for 14 and 15
avatar
type4revolution
Complete Dub Addict

Number of posts : 907
Location : outside savannah ga
Registration date : 2011-12-11

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by fluxcap on Thu Jan 23, 2014 2:55 pm

Oh I've got babystangs up front!  Just want to ditch the adapters in the rear and get a little more stopping power.

_________________
eric

It's like, how much more black could this be, and the answer is none.......none more black.

1962 ragtop beetle
1966 camper bus - Bocephus
avatar
fluxcap
Dub Lieutenant General

Number of posts : 3854
Location : Newnan, GA
Registration date : 2008-07-20

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by type4revolution on Thu Jan 23, 2014 3:05 pm

Sounds good
avatar
type4revolution
Complete Dub Addict

Number of posts : 907
Location : outside savannah ga
Registration date : 2011-12-11

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by Grifspop on Thu Jan 23, 2014 9:24 pm

ISP West is a great source on Type 3 stuff

http://www.vwispwest.com/pg96/

avatar
Grifspop
Dub God

Number of posts : 2323
Location : Someplace you wouldn't think to look
Registration date : 2009-04-14

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by fluxcap on Fri Jan 24, 2014 4:19 am

Bookmarked! Thanks

_________________
eric

It's like, how much more black could this be, and the answer is none.......none more black.

1962 ragtop beetle
1966 camper bus - Bocephus
avatar
fluxcap
Dub Lieutenant General

Number of posts : 3854
Location : Newnan, GA
Registration date : 2008-07-20

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by bumblebuggy on Fri Jan 24, 2014 8:35 am

Simple fix to get more braking power out of what you already have on there. Especially effecitve since you already have discs on the front. Buy a pair of FRONT wheel cylinders for a 68 bug. They'll bolt right on and have more stopping power than the rear cylinders. The BumbleBuggy had the cylinders reversed with fonts in the rear and rear in the front because all the weight of that car was in the rear. Worked great at preventing the front brakes from locking up. The Jolly Rancher is running '69 beetle drums in the rear with FRONT wheel cylinders.
avatar
bumblebuggy
Out of Control Dubber

Number of posts : 1921
Location : McDonough
Registration date : 2008-07-24

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by fluxcap on Fri Jan 24, 2014 8:40 am

Yeah, I've heard those wheel cylinders do provide more force.  Do you have adapters in the rear Glenn?  I know you've got aftermarket wheels, but can't remember what lug pattern they are.  Also not sure what kind of offset your wheels have, how close are you to the springplate.  I'm really wanting to ditch the adapters, but in order to do so, I'd have to get drums that are wider than the stock beetle drums to avoid rubbing (really rubbing doesn't even describe it, I doubt I could even mount a wheel it would be so close), and if I'm going to do that, I'd like to just upgrade everything to T3.

If all else fails, I'll just get some custom wide drums or wheels with a funky offset and cut the wheel arches for that jersey look that is so in these days.

_________________
eric

It's like, how much more black could this be, and the answer is none.......none more black.

1962 ragtop beetle
1966 camper bus - Bocephus
avatar
fluxcap
Dub Lieutenant General

Number of posts : 3854
Location : Newnan, GA
Registration date : 2008-07-20

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by bumblebuggy on Fri Jan 24, 2014 8:47 am

I'm running four lug sprints (GASP!!! affraid ) that are 5 inches wide. The offset is similar to empi fives. No adapters. 205-65-15s and they just barely rub the lip on the passenger side wheel when I pull the wheel off.
avatar
bumblebuggy
Out of Control Dubber

Number of posts : 1921
Location : McDonough
Registration date : 2008-07-24

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by fluxcap on Fri Jan 24, 2014 8:51 am

yeah, those wheels are offset to the outside a good bit more than stock rims. I'm a stock rim lover, so I'd like to keep the stockers (maybe stock 15s one day). I'd be smelling rubber for days if I tried to run 205s  Laughing

_________________
eric

It's like, how much more black could this be, and the answer is none.......none more black.

1962 ragtop beetle
1966 camper bus - Bocephus
avatar
fluxcap
Dub Lieutenant General

Number of posts : 3854
Location : Newnan, GA
Registration date : 2008-07-20

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by type4revolution on Fri Jan 24, 2014 12:17 pm

Love my stock 14's
avatar
type4revolution
Complete Dub Addict

Number of posts : 907
Location : outside savannah ga
Registration date : 2011-12-11

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by fluxcap on Fri Jan 24, 2014 12:39 pm

that's what I'm talkin bout!

_________________
eric

It's like, how much more black could this be, and the answer is none.......none more black.

1962 ragtop beetle
1966 camper bus - Bocephus
avatar
fluxcap
Dub Lieutenant General

Number of posts : 3854
Location : Newnan, GA
Registration date : 2008-07-20

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by Slim4life on Fri Jan 24, 2014 5:24 pm

just do a stock wide 5 type3 wheels and breaks
avatar
Slim4life
Dub Noob

Number of posts : 38
Age : 30
Location : newnan
Registration date : 2013-09-28

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by fluxcap on Fri Jan 24, 2014 5:26 pm

That's the plan as soon as I can find all the parts.

_________________
eric

It's like, how much more black could this be, and the answer is none.......none more black.

1962 ragtop beetle
1966 camper bus - Bocephus
avatar
fluxcap
Dub Lieutenant General

Number of posts : 3854
Location : Newnan, GA
Registration date : 2008-07-20

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by type4revolution on Fri Jan 24, 2014 9:21 pm

avatar
type4revolution
Complete Dub Addict

Number of posts : 907
Location : outside savannah ga
Registration date : 2011-12-11

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by type4revolution on Fri Jan 24, 2014 9:22 pm

Best option
avatar
type4revolution
Complete Dub Addict

Number of posts : 907
Location : outside savannah ga
Registration date : 2011-12-11

View user profile

Back to top Go down

Re: type 1 vs type 3 brake drums (and now Thing drums added to page 4)

Post by type4revolution on Fri Jan 24, 2014 9:27 pm

avatar
type4revolution
Complete Dub Addict

Number of posts : 907
Location : outside savannah ga
Registration date : 2011-12-11

View user profile

Back to top Go down
