Rust removal by electrolysis (revisited) with detailed photos/info

View previous topic View next topic Go down

Rust removal by electrolysis (revisited) with detailed photos/info

Post by atye on Wed Jan 09, 2013 11:00 am

I have recently tried this myself for the first time and wanted to show everyone how stupidly EASY and CHEAP this is.
pwmcguire has already done one introduction to this process but I wanted to make a more detailed explanation. I think that everyone on here or anyone owning an old car needs to try this. It will save tons of time, energy, and money. No need to sandblast rusty parts. Simply put them in the tank and go to bed, they will be done 18-24hrs later (for most situations). Anyone can do this regardless of your level of technical knowledge or budget!

Here is a before/after scenario using a rusty brake caliper bracket from my 1988 Audi 90 Quattro:
(click all images to enlarge)

Before:

After:


Same part 18hrs later with ZERO scrubbing, no wire brush, no sandblasting... nothing.

Materials used:
tap water
baking soda
battery charger (or car battery and cheap jumper cables)
plastic tub
old piece of steel for use as an electrode (I used a broken golf-cart leaf spring)

That's it, nothing else. The size of the part to be cleaned is only limited by the size of the imagination. As long as you can submerge the part, you can do this. I will include a link below to show this in action on a large scale.

How to:
Step #1: Find a tub/bucket large enough to totally submerge your item. Fill with water, add baking soda, and clamp the electrode to the side (so it won't fall and touch the rusty part later by accident)


Step#2:
Attach the battery charger like shown. It is VERY important not to reverse the leads or you will possibly damage the part you are trying to save. Positive goes to the steel electrode (anode) and negative goes to the part itself (cathode).


That's it! Nothing else to do but sit and wait.
Here is what mine looked like after about a minute:

You can sorta see the bubbling/fizzing has already started.

After 12hrs:




After 18hrs:




After drying in the sun:


And here is the total aftermath:
Leftover rust removed from the part. Some were huge layers of rust still in one piece!


The anode itself:


Anode after cleaning:


The anode itself is actually referred to as a "sacrificial anode" because it sacrifices (loses) some of it's own metal in the process. This is why it is so important not to reverse the leads or your part itself may look like this one does.


Well, that is all that there is to it. I am including a couple of links that have a little more detailed scientific info (like why NOT to use stainless steel for an anode) and pictures of larger items (car subframes) using this process.

Audi subframe thread with lots of pics: http://www.s2forum.com/forum/showthread.php?t=52199
Another great link with TONS of great info (also in pwmcguire's write-up): http://users.eastlink.ca/~pspencer/nsaeta/electrolysis.html



Now let's see some before/after pics from the GADUBS folks!
avatar
atye
Dub Nut

Number of posts : 259
Age : 49
Location : Peachtree City, GA
Registration date : 2008-11-15

View user profile

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by Hobug on Wed Jan 09, 2013 12:26 pm

After seeing how easy it was to remove the rust, I went to You Tube and found this video of how to make a fairly good sized tank.

http://www.youtube.com/watch?v=54ADeB6V1rQ

I went to Lowe's and bought all the components, now I just need to build it.
avatar
Hobug
Out of Control Dubber

Number of posts : 1290
Location : Bishop GA
Registration date : 2008-07-22

View user profile http://www.athensvwclub.com

Back to top Go down

Rust removal

Post by pwmcguire on Wed Jan 09, 2013 12:27 pm

I just revised my posting the other day. This is a great solution to removing rust. I have spent hours with a wire wheel taking rust off. Some tips I can add is to put your parts in on Wednesday and they will be ready by Saturday. If you start on Saturday It will be ready late Sunday, maybe Monday I use a 55 gallon plastic drum to clean my Parts and several pieces of rebar suspended in it.


Last edited by pwmcguire on Wed Jan 09, 2013 6:07 pm; edited 1 time in total
avatar
pwmcguire
Complete Dub Addict

Number of posts : 786
Age : 49
Location : Kennesaw
Registration date : 2009-08-06

View user profile

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by atye on Wed Jan 09, 2013 1:46 pm

Try it on something small in the meantime and you will be blown away by the results!


PS: Great video, very clever how he uses more re-bar to enhance the process!
avatar
atye
Dub Nut

Number of posts : 259
Age : 49
Location : Peachtree City, GA
Registration date : 2008-11-15

View user profile

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by Tanner on Thu Jan 10, 2013 12:31 pm

Awesome! I see you have your negative lead submerged along with the part and the guy in the video keeps it out. No difference I reckon?
avatar
Tanner
Dub Noob

Number of posts : 68
Location : Augusta, Ga.
Registration date : 2008-07-22

View user profile http://rt1designs.com

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by atye on Thu Jan 10, 2013 1:32 pm

Tanner wrote:Awesome! I see you have your negative lead submerged along with the part and the guy in the video keeps it out. No difference I reckon?

The only difference was a little discoloration of my battery clip. I like the way he made his tub, though, with the 4 anodes around the edges. I'm gonna make me a larger tub like his for future projects.

Also, I stuck my hand in the water with the voltage running, it is not even pulling 1A and it's DC, so not quite so dangerous.
affraid afro
avatar
atye
Dub Nut

Number of posts : 259
Age : 49
Location : Peachtree City, GA
Registration date : 2008-11-15

View user profile

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by pwmcguire on Thu Jan 10, 2013 2:25 pm

If you have to buy rebar get a 10 ft section the small stuff is too expensive by the piece. You will have to cut it with a cutoff wheel.
avatar
pwmcguire
Complete Dub Addict

Number of posts : 786
Age : 49
Location : Kennesaw
Registration date : 2009-08-06

View user profile

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by Hobug on Mon Jan 28, 2013 10:17 pm

I built my electrolysis tank and it works great. I removed the rust from the e-brake handle.

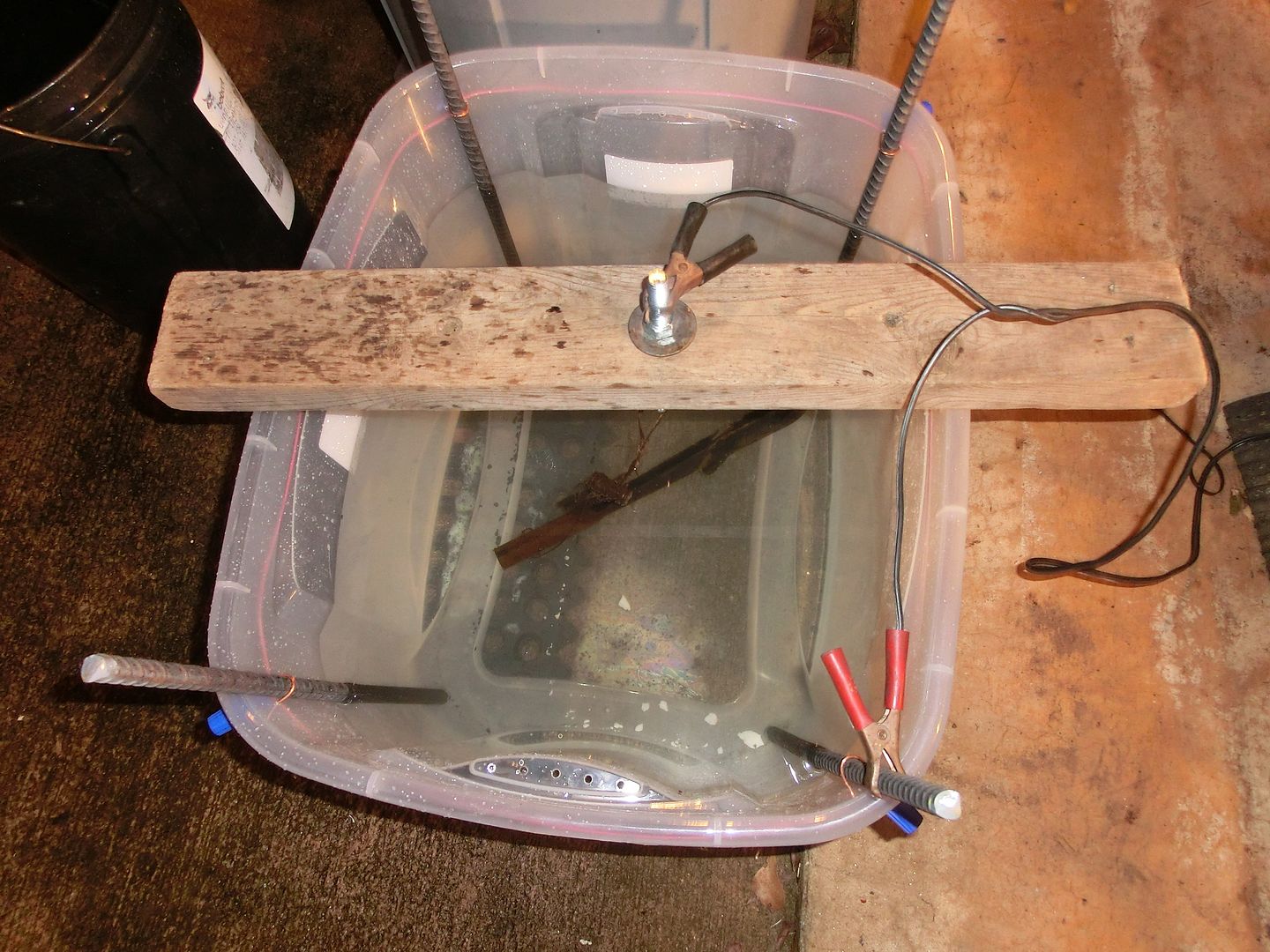

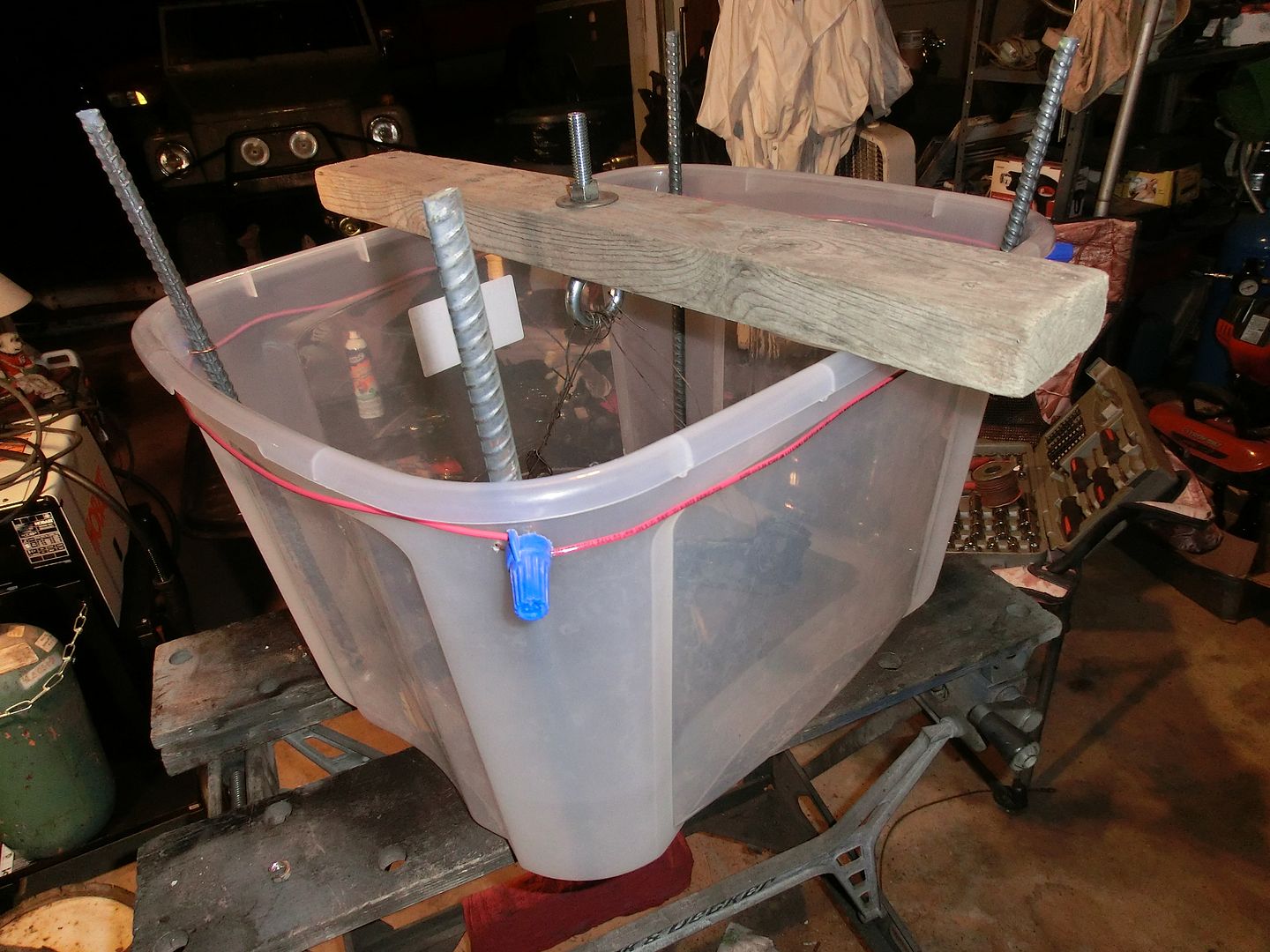

Here is the tank I built.



Handle going in.

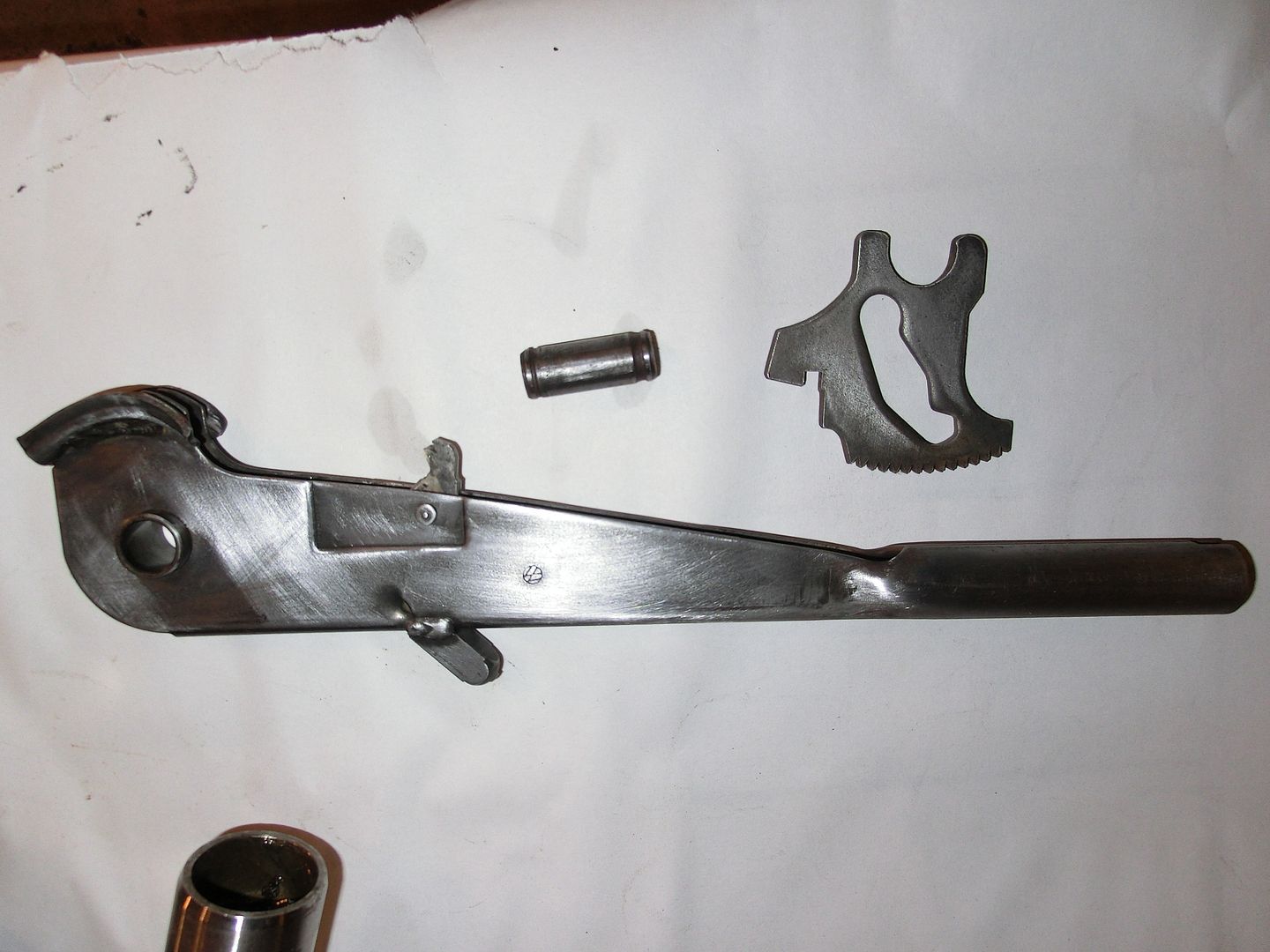

Out of the tank after spending the night bubbling away.


After a quick sanding with 320 grit.




Prime.

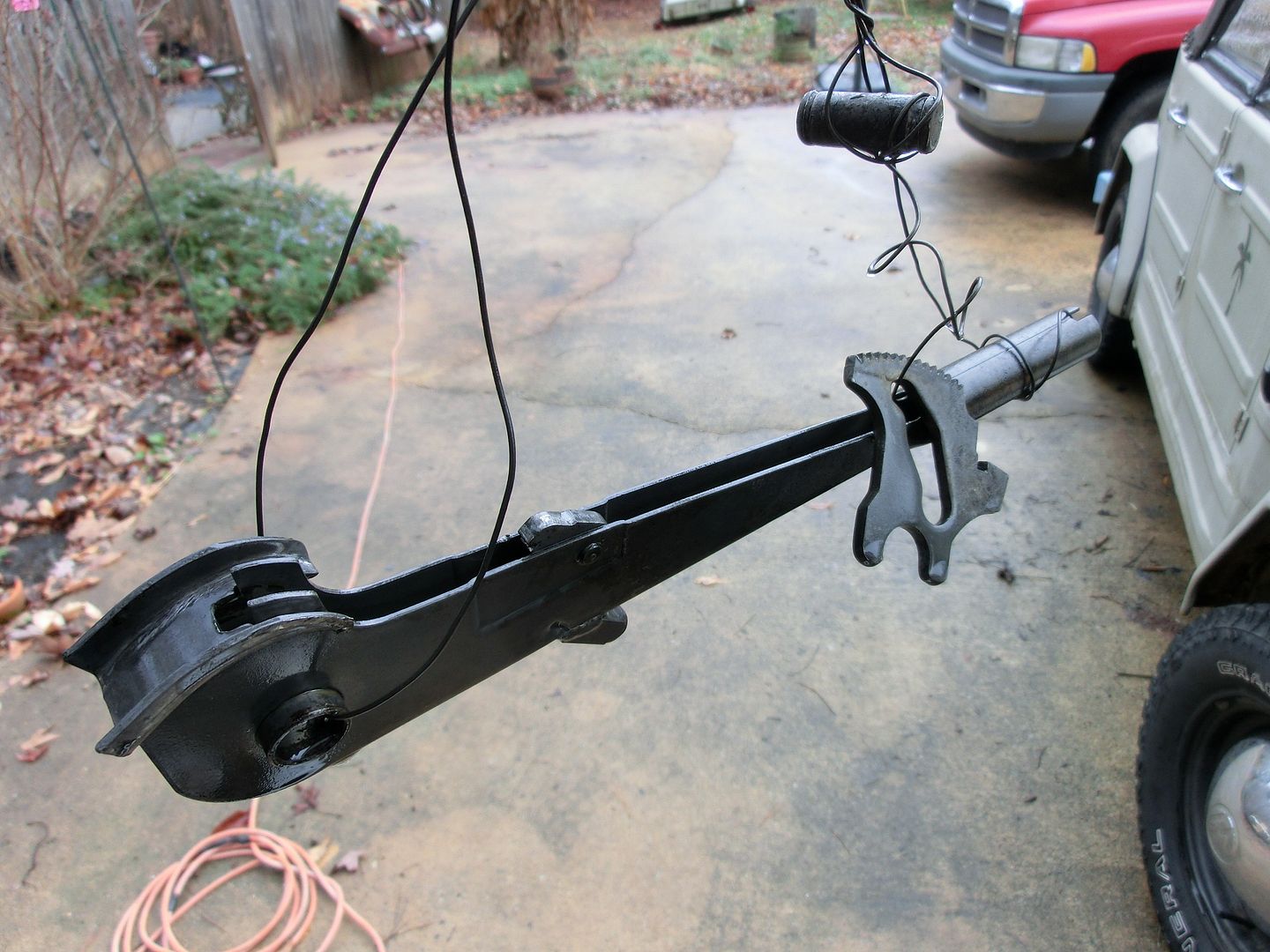

Paint.


I wish I had known about this long ago. I would have saved a lot of time instead of wire brushing my life away.
avatar
Hobug
Out of Control Dubber

Number of posts : 1290
Location : Bishop GA
Registration date : 2008-07-22

View user profile http://www.athensvwclub.com

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by Hobug on Thu Jan 31, 2013 8:58 pm

Is there a limit to the size container that this will work in?

I have a storage container that is about two feet wide and three and a half feet long. As long as there are several rebars spaced along the sides I would think it will work.

Any thoughts?
avatar
Hobug
Out of Control Dubber

Number of posts : 1290
Location : Bishop GA
Registration date : 2008-07-22

View user profile http://www.athensvwclub.com

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by pwmcguire on Thu Jan 31, 2013 10:11 pm

No, it will work for any size container you can build to hold water
avatar
pwmcguire
Complete Dub Addict

Number of posts : 786
Age : 49
Location : Kennesaw
Registration date : 2009-08-06

View user profile

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by Grifspop on Thu Jan 31, 2013 10:13 pm

Hobug wrote:Is there a limit to the size container that this will work in?

I have a storage container that is about two feet wide and three and a half feet long. As long as there are several rebars spaced along the sides I would think it will work.

Any thoughts?

I saw someone's thread where they put a complete frame in- they built a small swimming pool size container, and put the frame in
avatar
Grifspop
Dub God

Number of posts : 2323
Location : Someplace you wouldn't think to look
Registration date : 2009-04-14

View user profile

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by Clyde on Tue Feb 12, 2013 8:50 pm

That's really cool. I know someone with a swimming pool jocolor
avatar
Clyde
Dub Nut

Number of posts : 278
Location : Athens, Ga
Registration date : 2008-07-23

View user profile http://athensvwclub.com

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by pwmcguire on Tue Feb 12, 2013 9:26 pm

Clyde !!, always thinking big. You could do a whole vw body in there Twisted Evil
avatar
pwmcguire
Complete Dub Addict

Number of posts : 786
Age : 49
Location : Kennesaw
Registration date : 2009-08-06

View user profile

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by Hobug on Tue Feb 12, 2013 10:12 pm

Clyde wrote:That's really cool. I know someone with a swimming pool jocolor

Lets try it! Twisted Evil
avatar
Hobug
Out of Control Dubber

Number of posts : 1290
Location : Bishop GA
Registration date : 2008-07-22

View user profile http://www.athensvwclub.com

Back to top Go down

need a BIG tank

Post by bulldawgdude on Tue Feb 12, 2013 10:21 pm

[img][/img] NEED THIS RACK DONE. some one build a BIG tank.
avatar
bulldawgdude
Dub Nut

Number of posts : 269
Location : Juliette , GA
Registration date : 2011-03-30

View user profile

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by bulldawgdude on Tue Feb 12, 2013 10:21 pm

[img][/img]
avatar
bulldawgdude
Dub Nut

Number of posts : 269
Location : Juliette , GA
Registration date : 2011-03-30

View user profile

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by Hobug on Thu Feb 14, 2013 4:20 pm

I've been setting the battery charger on 2 amps and on light rust it is fine, but on heavier rust what happens if I set it on 10 amps?

That's right, this thing has spoiled me Twisted Evil and I want it too do ALL the work. So, is 10 amps too much?
avatar
Hobug
Out of Control Dubber

Number of posts : 1290
Location : Bishop GA
Registration date : 2008-07-22

View user profile http://www.athensvwclub.com

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by pwmcguire on Thu Feb 14, 2013 4:40 pm

If you look online 2 amps is plenty, keep your electrodes clean and more of them
avatar
pwmcguire
Complete Dub Addict

Number of posts : 786
Age : 49
Location : Kennesaw
Registration date : 2009-08-06

View user profile

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by Hobug on Thu Feb 14, 2013 5:06 pm

pwmcguire wrote:If you look online 2 amps is plenty, keep your electrodes clean and more of them

I clean electrodes each time, but maybe I need more than four. Thanks Pat.
avatar
Hobug
Out of Control Dubber

Number of posts : 1290
Location : Bishop GA
Registration date : 2008-07-22

View user profile http://www.athensvwclub.com

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by bayboy87 on Thu Feb 14, 2013 7:40 pm

any risk of shock using this method? also looked up molasses and water takes rust off in two to 3 days anyone tried that? im tired of blowingg the rust boogies plus i can do something while waiting wish they wouldnt have busted up the inground pool that was at my house knew it would come in use
avatar
bayboy87
Dub Nut

Number of posts : 246
Age : 30
Location : jones county
Registration date : 2012-09-16

View user profile

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by dlandvw3 on Sat Feb 23, 2013 8:27 pm

How much baking soda do you guys put in when you do it?
avatar
dlandvw3
Dub Nut

Number of posts : 479
Location : Warner Robins, GA
Registration date : 2008-09-08

View user profile

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by pwmcguire on Sat Feb 23, 2013 10:33 pm

dlandvw3 wrote:How much baking soda do you guys put in when you do it?

Mix a solution of 5 gallons water to 1/3 to 1/2 cup laundry soda, by the way it's washing soda.
avatar
pwmcguire
Complete Dub Addict

Number of posts : 786
Age : 49
Location : Kennesaw
Registration date : 2009-08-06

View user profile

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by m1auto on Sun Feb 24, 2013 7:20 pm

this methed also works on engine blocks and heads quite well. it makes your engine block much easier to paint without the risk of sandblasting grit getting into the engines oil channels. obviously im not talking about VW engines because they are aluminum and therefore dont rust. but it works well on iron engne blocks and heads.

m1auto
Dub Noob

Number of posts : 32
Age : 23
Location : california
Registration date : 2012-10-13

View user profile

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by Gabass on Sun Mar 31, 2013 7:55 pm

Easter bunny brought me parts to build one Very Happy
bulldawgdude wrote: NEED THIS RACK DONE. some one build a BIG tank.
You can get a plastic kiddie pool for around $5 to use. They'll all go on sale at the beginning of summer.
avatar
Gabass
Dub Nut

Number of posts : 350
Age : 19
Location : Watkinsville, GA
Registration date : 2013-01-17

View user profile https://www.facebook.com/NorthGeorgiaSpeedometer?fref=ts

Back to top Go down

Re: Rust removal by electrolysis (revisited) with detailed photos/info

Post by Sponsored content


Sponsored content


Back to top Go down

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
