Traditional question part 2: lowering the rear

Post by 86vwgti8v on Fri Jun 17, 2011 5:36 pm

just like as in the beam question I posted, I will be researching this but I want to see what you guys may have to offer.

I guess I am looking to notch the spring plates. Any one Have dimensions on that?

How low will X amount of clicks get? there's no motor in it so its kinda hard to judge.

Is there a DIY on any of this?

I know there is a inner and outer spline but I'm looking for pointers as to what this is in reference to.

You guys were a huge help on my other post hopefully some one else can find that thread and use the info generated.
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question part 2: lowering the rear

Post by fluxcap on Fri Jun 17, 2011 6:10 pm

This is what I followed when I lowered my rear end. This article is actually for raising a rear end, but it gives you the idea of how everything comes apart and works.
http://www.meyersmanx.com/garage/garage_suspend.htm

The rear torsion bars (one on each side of the car) have splines on both ends. Inner splines and outer splines. The inner and outer ends have a different number of splines though, so rotating one outer spline isn't the same as rotating one inner spline. Here is a chart that shows you how much each spline lowers your car.



Before you do anything, go to home depot, find the tool section, and get what is called an inclinometer. This is the best tool to have when re-indexing the rear. Once you drop the spring plate from the stop and it is at a free rest, measure your angle BEFORE you remove the spring plate from the torsion bar. This way if you mess up, you know where you started and can easily get back there.

You can use a combination of inners and outers movements to fine tune. Indexing the arm up one outer spline gives you a drop of 5.5cm (a little over 2 inches)

_________________
eric

It's like, how much more black could this be, and the answer is none.......none more black.

1962 ragtop beetle
1966 camper bus - Bocephus
avatar
fluxcap
Dub Lieutenant General

Number of posts : 3854
Location : Newnan, GA
Registration date : 2008-07-20

View user profile

Back to top Go down

Re: Traditional question part 2: lowering the rear

Post by 57RTOval on Fri Jun 17, 2011 7:09 pm

Ditto on the inclinometer. My 57 was leaning badly when I got it so I had no good starting point. I used the inclinometer to set both sides equal and re-level the car.
avatar
57RTOval
Dub Crazy

Number of posts : 528
Age : 47
Location : Ball Ground, GA
Registration date : 2008-11-09

View user profile

Back to top Go down

Re: Traditional question part 2: lowering the rear

Post by ASBug on Fri Jun 17, 2011 9:49 pm

X3 on the inclinometer, around like $10 at Home depot.
Also, there is a really good 4 part series on Youtube on this:
http://www.youtube.com/watch?v=AMxBolHOJR4
There are like 10 thousand videos on how to do this, but this guy is easy to understand and puts it into plain english.
It is the same as a beetle, except some, (like mine), have 2 swing plates.

Good luck!
KC


Last edited by ASBug on Sat Jun 18, 2011 7:09 am; edited 1 time in total
avatar
ASBug
Dub God

Number of posts : 2184
Age : 45
Location : Varnell, GA
Registration date : 2009-01-12

View user profile

Back to top Go down

Re: Traditional question part 2: lowering the rear

Post by 86vwgti8v on Sat Jun 18, 2011 6:54 am

Thanks errbody!

I was watching some of the vids last night. Looks rather simple.
How many "clicks" before I need to notch the spring plates?
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question part 2: lowering the rear

Post by 86vwgti8v on Sat Jun 18, 2011 7:33 am

http://www.manuelsweb.com/in_cm.htm

There's a cm to inch conversion chart if anyone else would like it.

At one point in time some one told me to be careful when doing this, they sted like the springs may be under pressure. True?

How much can I expect the motor to drop it? Not sure if I want to do 2 or 3 outer splines.
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question part 2: lowering the rear

Post by bakertim2 on Sat Jun 18, 2011 10:29 pm

This is what 3 outer spline will look like...
avatar
bakertim2
Dub God

Number of posts : 3223
Age : 52
Location : Dallas, Ga.
Registration date : 2008-10-16

View user profile

Back to top Go down

Re: Traditional question part 2: lowering the rear

Post by 86vwgti8v on Sun Jun 19, 2011 8:11 am

^ this!
Did you have to notch your spring plates?
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question part 2: lowering the rear

Post by bakertim2 on Sun Jun 19, 2011 11:39 am

Yes, I notched about a 1/2" out to keep the plate from hitting the stop.
avatar
bakertim2
Dub God

Number of posts : 3223
Age : 52
Location : Dallas, Ga.
Registration date : 2008-10-16

View user profile

Back to top Go down

Re: Traditional question part 2: lowering the rear

Post by 57RTOval on Sun Jun 19, 2011 11:58 am

The spring plates are under load when setting against the bottom stop. There's a number of ways to get them past the stop safely including a special tool.
http://www2.cip1.com/ProductDetails.asp?ProductCode=ACC-C10-7047
avatar
57RTOval
Dub Crazy

Number of posts : 528
Age : 47
Location : Ball Ground, GA
Registration date : 2008-11-09

View user profile

Back to top Go down

Re: Traditional question part 2: lowering the rear

Post by Attorney Isaiah Loophole on Sun Jun 19, 2011 12:01 pm

for a swing all you need to do is take the axle loose put the jack under the end of the spring plate and lift it off the stop.....put a big screw driver between the plate and housing and pry it out while lowering the jack enough to clear the stop

_________________
1958 Euro Beetle "Raggedy Anne"
1961 Beetle "Old Blue"
1964 Beetle "Pat"
1966 Chevy C10 swb fleetside
1967 Black Friday Bus

Bryce
avatar
Attorney Isaiah Loophole
Dub General

Number of posts : 4917
Age : 31
Location : Griffin, GA
Registration date : 2008-07-20

View user profile http://forum.georgiadubs.com

Back to top Go down

Re: Traditional question part 2: lowering the rear

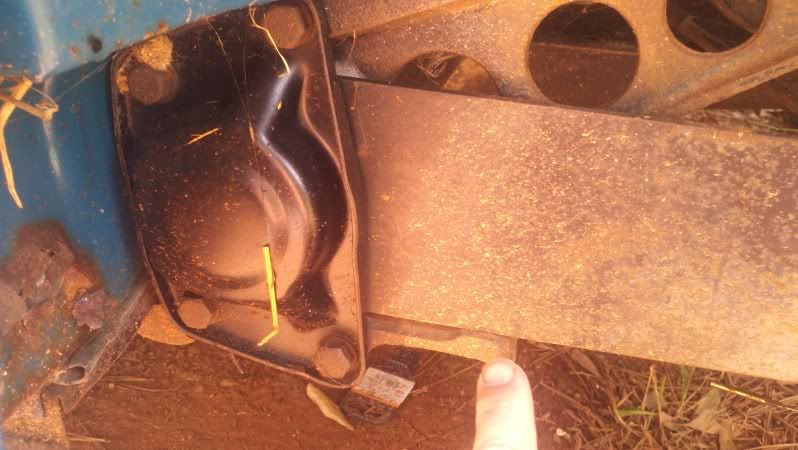

Post by 86vwgti8v on Sun Jun 19, 2011 1:05 pm



Is that what we are calling the stop?
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question part 2: lowering the rear

Post by fluxcap on Sun Jun 19, 2011 1:36 pm

That's it!

_________________
eric

It's like, how much more black could this be, and the answer is none.......none more black.

1962 ragtop beetle
1966 camper bus - Bocephus
avatar
fluxcap
Dub Lieutenant General

Number of posts : 3854
Location : Newnan, GA
Registration date : 2008-07-20

View user profile

Back to top Go down

Re: Traditional question part 2: lowering the rear

Post by bakertim2 on Sun Jun 19, 2011 2:22 pm

I am referring to upper stop. When one lowers the rear excessively as on Drew's car, the spring plate has to be notched or have an offset built into it. Something similar to these which are for a bus.

There are drop plates available as well.
avatar
bakertim2
Dub God

Number of posts : 3223
Age : 52
Location : Dallas, Ga.
Registration date : 2008-10-16

View user profile

Back to top Go down

Re: Traditional question part 2: lowering the rear

Post by 86vwgti8v on Sun Jun 19, 2011 3:39 pm

Right on, there was 2 conversations regarding stops at the same time. I really like the concept of the drop spring plates.
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question part 2: lowering the rear

Post by callahan on Sun Jun 19, 2011 9:40 pm

just notch the plates and set em at 2 clicks you'll be good to go
don't over think it its waaaay easy

2 outers = nice and low may eat tires and rub depending on what size
3 outers = just time before your fulcrums and drums take a dump and its way low
avatar
callahan
Out of Control Dubber

Number of posts : 1271
Age : 27
Location : Acworth, GA
Registration date : 2010-02-06

View user profile http://www.facebook.com/#!/profile.php?id=1030359664

Back to top Go down

Re: Traditional question part 2: lowering the rear

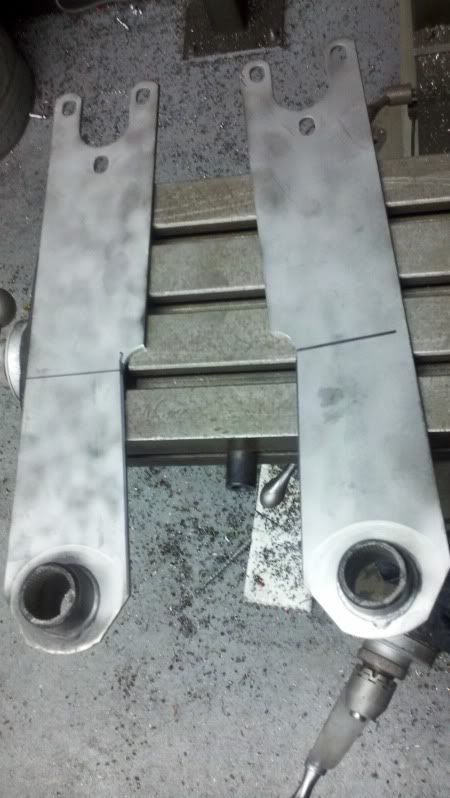

Post by 86vwgti8v on Wed Jun 22, 2011 7:57 am



Media blasted, and notched. Already painted one side and they look damn good!
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question part 2: lowering the rear

Post by bakertim2 on Wed Jun 22, 2011 8:40 am

Nice job...
avatar
bakertim2
Dub God

Number of posts : 3223
Age : 52
Location : Dallas, Ga.
Registration date : 2008-10-16

View user profile

Back to top Go down

Re: Traditional question part 2: lowering the rear

Post by 86vwgti8v on Wed Jun 22, 2011 8:42 am

Thank you, I appreciate that!
